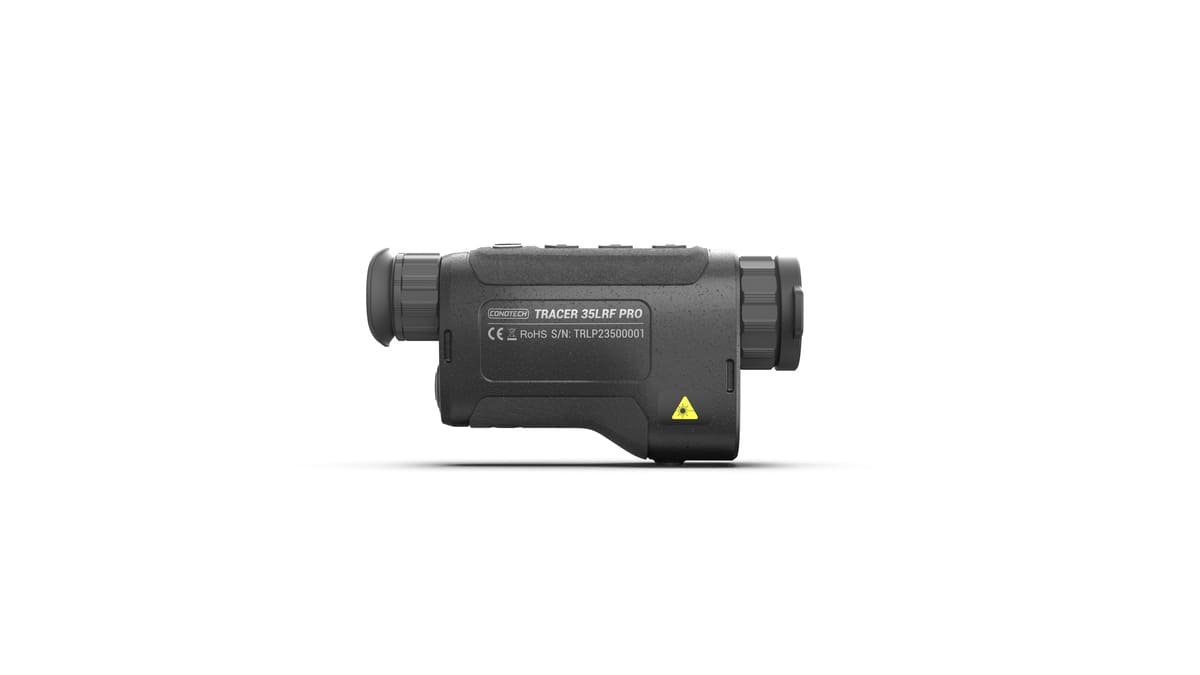

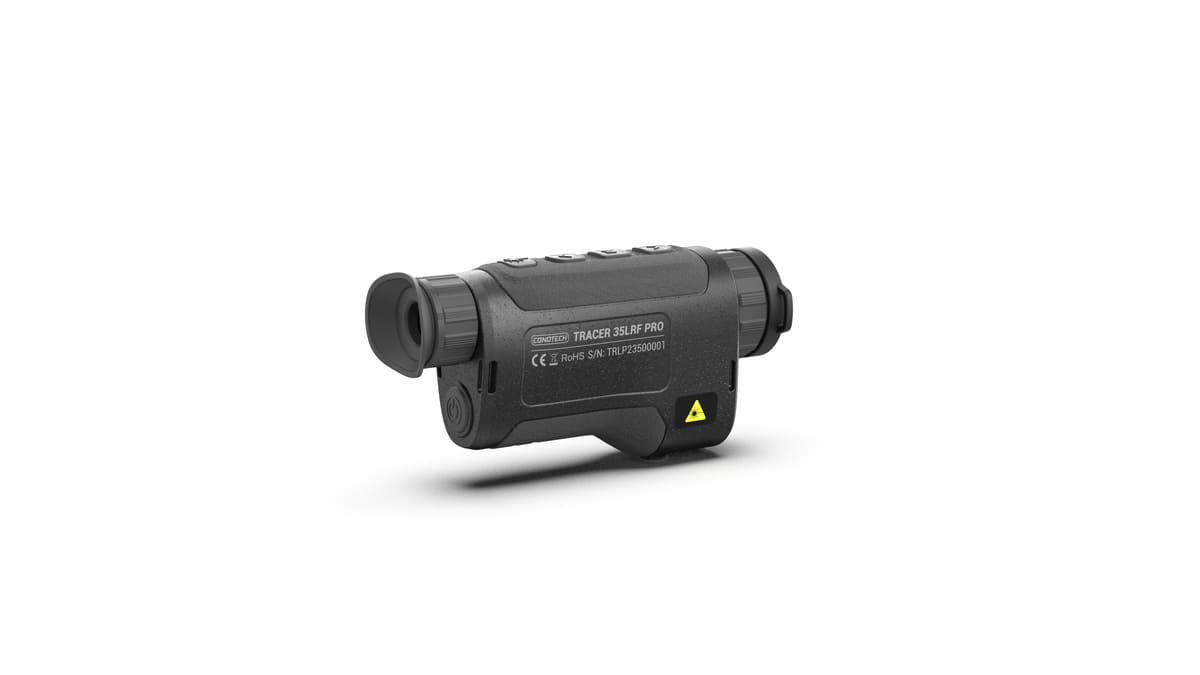

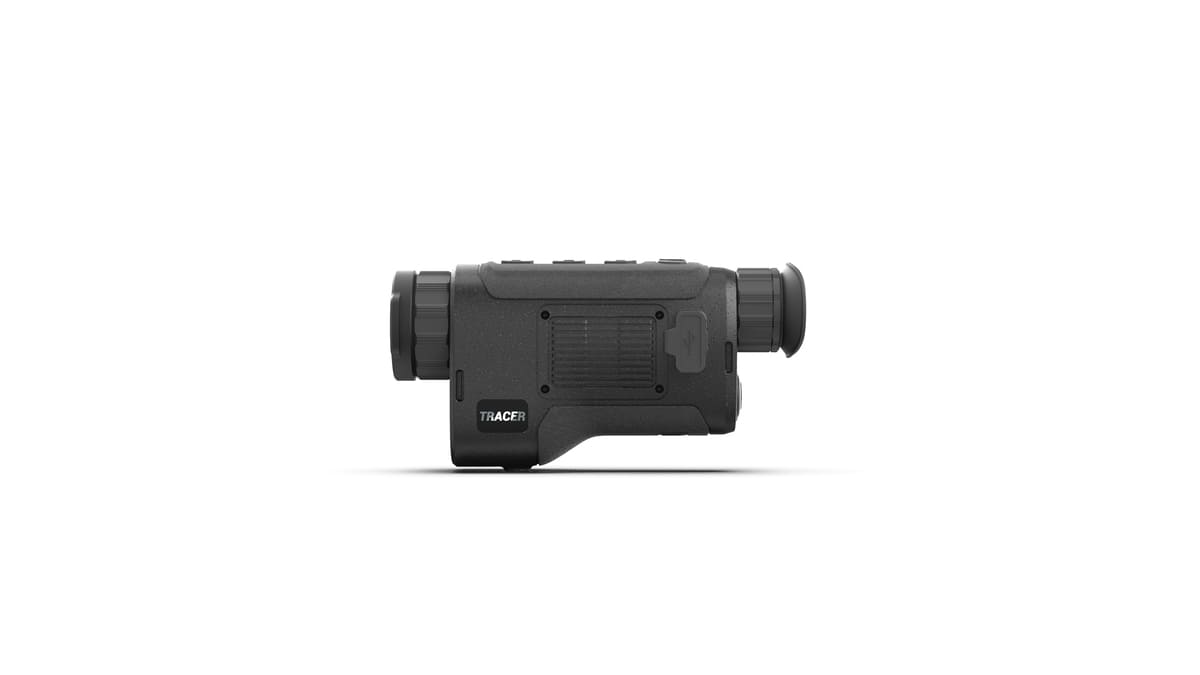

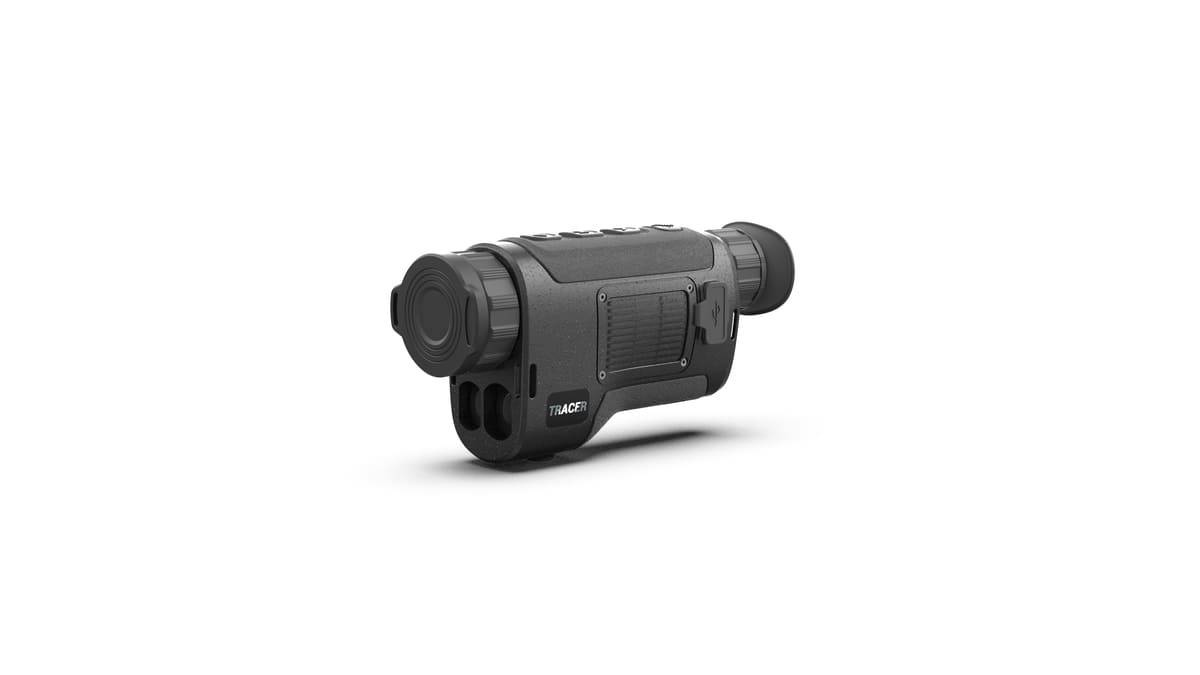

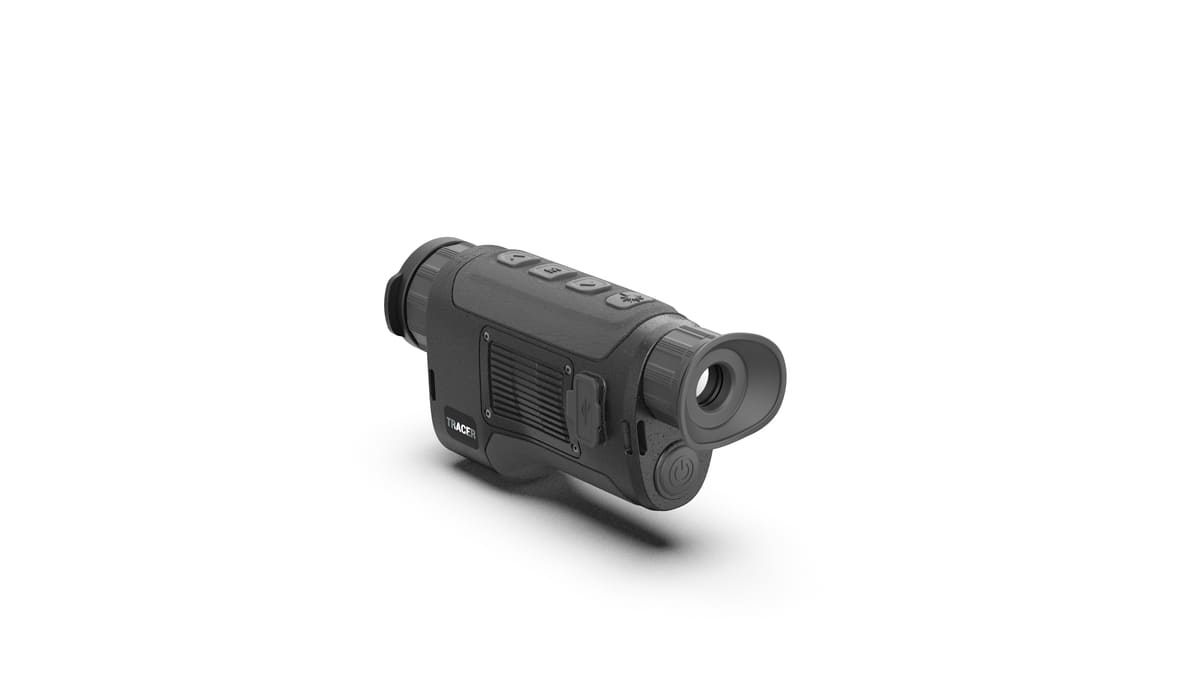

Thermal Monocular Tracer LRF Pro

– Built-in laser rangefinder
– Wifi and on-board recording
– Various observation modes
– High sensitive thermal image sensor
– Long Detection Range
– Long lasting operation time
– Video output function
– High-resolution OLED display

Category:

Description

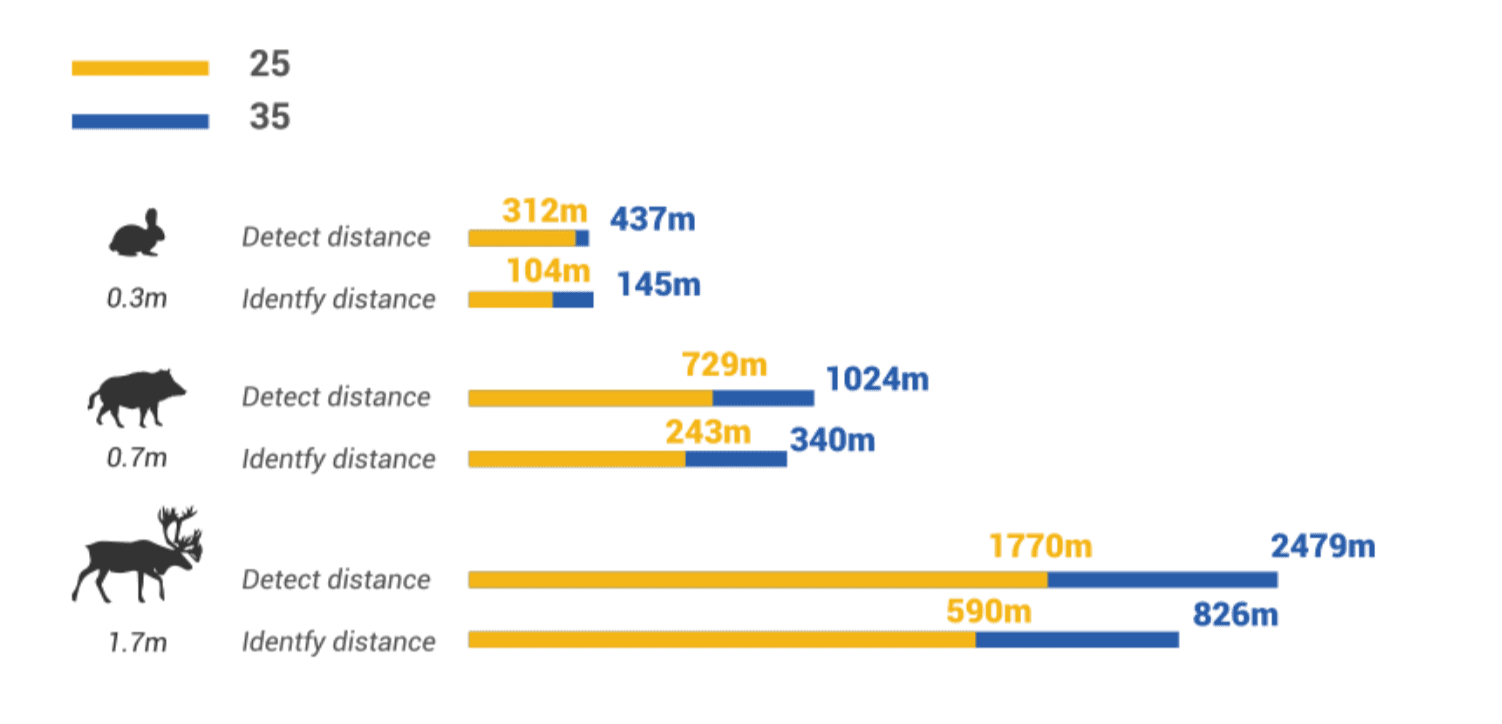

Detection range

A powerful F25 /1.0 or F35/1.1 objective lens combined with a highly-sensitive
thermal imaging sensor provides exceptional detection capabilities.

Built-in Laser rangefinder

Tracer is capable of accurately measuring distance to objects up to 1000 meters
away. The Integrated, precise laser rangefinder provides three modes -single time
measurement mode, scanning mode and high-humidity mode.

  • Wavelength: 905 nm
  • Max. measuring range: 1000 m
  • Measurement accuracy :± 1m
  • ( Safety class for laser equipment according to IEC 60825-1:2014: 1)

Technical specification

Tracer LRF 25ProTracer LRF 35Pro
Detector
TypeUncoled Vox
Resolution384×288
Frame rate50Hz
Pixel12μm
Spectral range8-14μm
NETDLess than 30mk
Optical characteristics
Objective lens25mm50mm/F1.1
Magnification2.4x3.3x
FOV10.6°x7.9°7.5°x5.7°
Close-up range5m
Dioptre adjustment-5D + 4D
Functions
Zoom1x/2x/4x
Palette6 optional (can be customized)
Start up timeLess than 5 seconds
Start up imageCan be customized
Image enhancementDDE
Contrast and brightnessAGC
Display
Online updateBoth code and GUI resources
TypeOLED
Resolution1024×768
Power Supply
BatteryBuilt-in lithium battery
External power supply5V micro USB
Working time with battery8h
Physical Characteristics
Weight without battery530g540g
Size mm153 x 50 x 92155 x 50 x 92
Enviromental Compatibility
Water proofIP67 (1m/30min.)
Operating temperature-20°C +50°C
Storage temperature-40°C +60°C
Laser Rangefinder
Safety class for laser aquipment according to IEC1
Measuring range5-1000m
Measurement accuracy±1m
