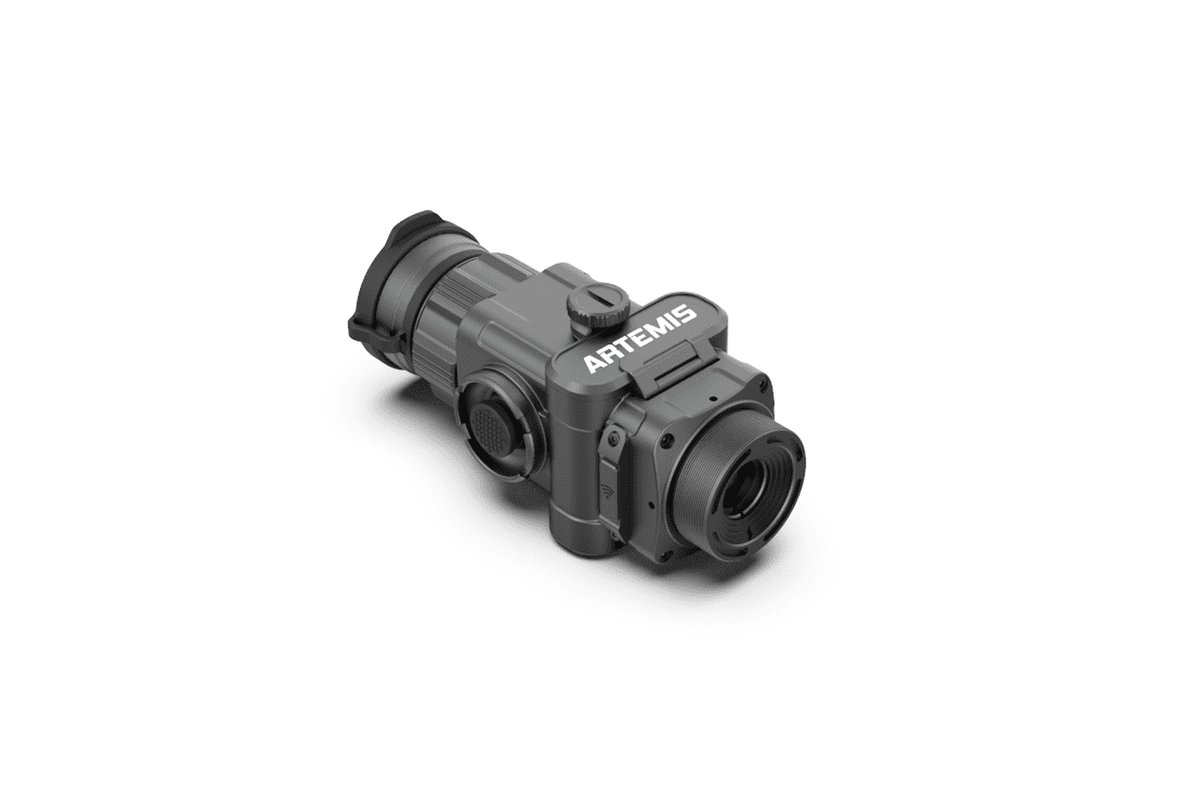

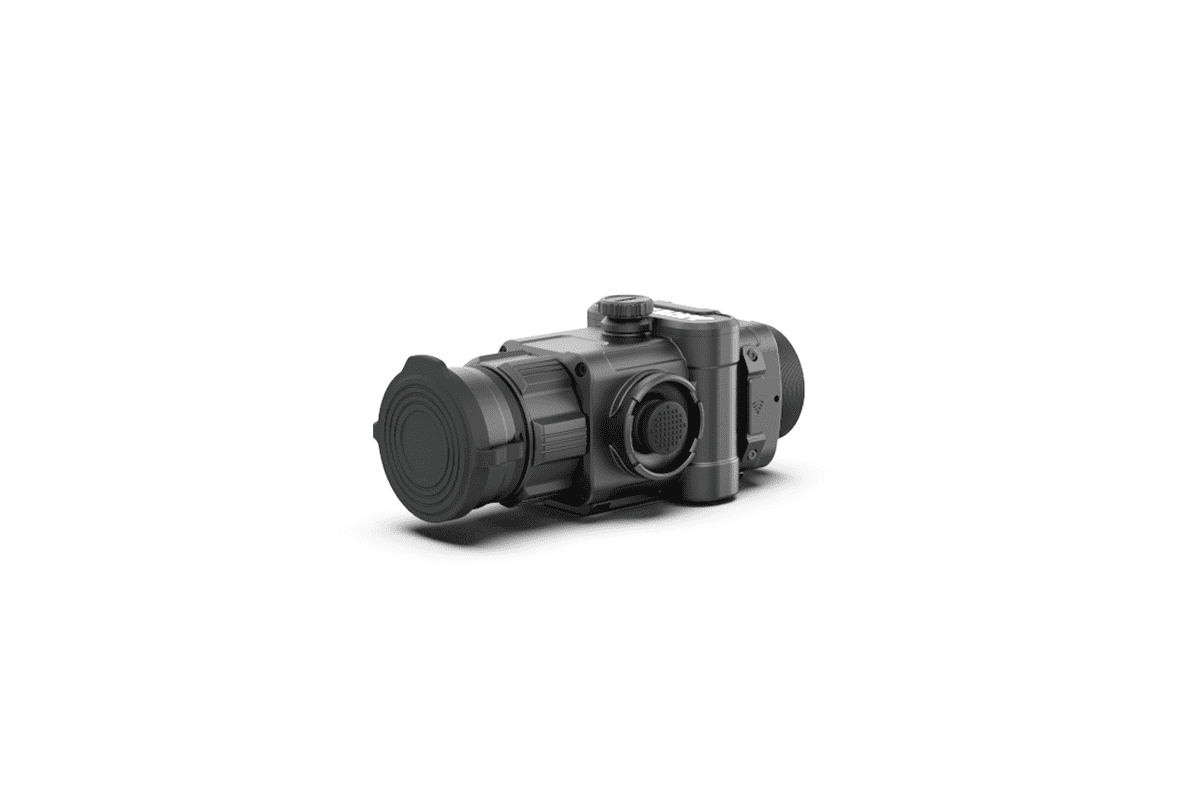

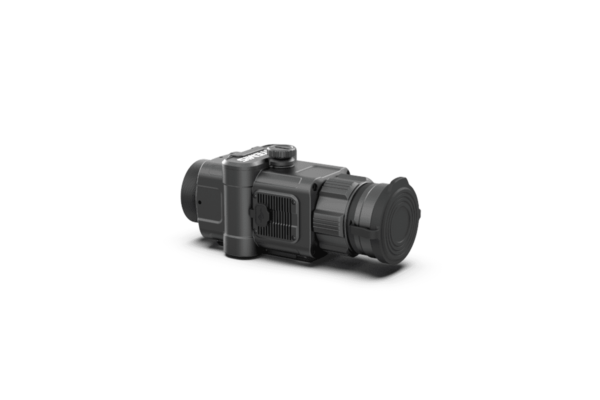

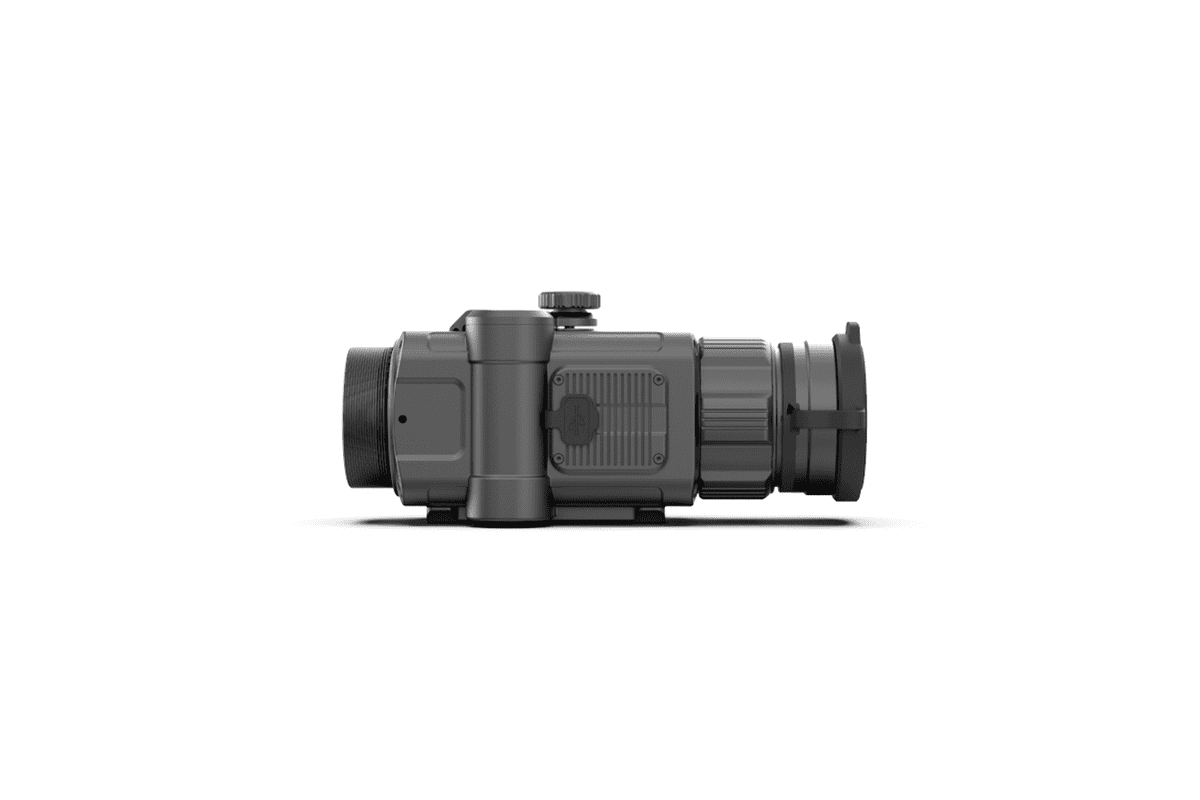

Thermal Vision Attachment ARTEMIS

– 12um Advanced imaging sensor
– Ultra light and compact design
– No rezeroing required and quickly mounted
– 1 MOA Accuray
– User-friendly interface
– 1200G shock resistance
– Long lasting operation time

Category:

Description

Detection Range

A powerful F25 /1.0 or F35/1.1 objective lens combined with a highly-sensitive
thermal imaging sensor provides exceptional detection capabilities.ti.

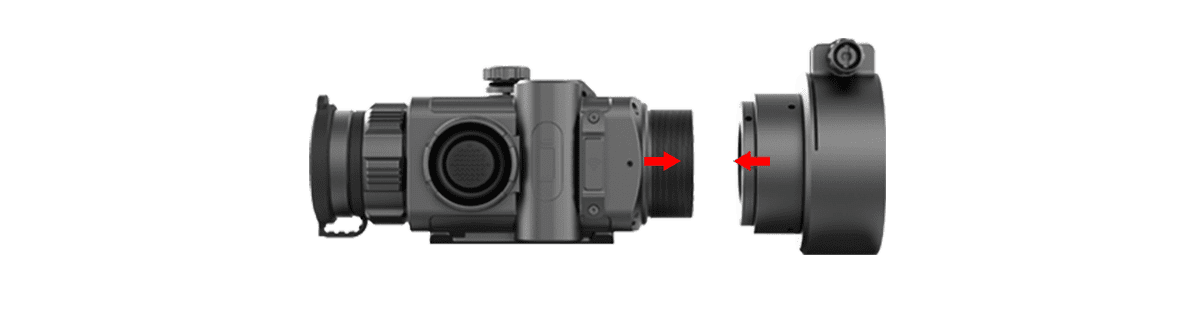

No rezeroing required and quickly mounted

Quickly mounted in front of your dayscope to provide enhanced thermal capabilities
without having to re-zero your daylight scope. The mount allows to perform precise
alignment of attachment’s field of view with central point of riflescope’s field of view
in order to achieve the optimal viewing position.

Technical specification

ARTEMIS 25ARTEMIS 35
Detector
TypeUncoled Vox
Resolution384×288
Frame rate50Hz
Pixel12μm
Spectral range8-14μm
NETD30mk
Optical characteristics
Objective lens25mm/F1.135mm/F1.1
Magnification1x1x
FOV10.6°x7.9°7.5×5.6°
Close-up range3m
Functions
PaletteBlackHot, WhiteHot, RedHot, Glowbow,
ColdGreen
Start up timeLess than 3 seconds
WiFiCan be customized
Storage capacity32GB
Standby modeYes
Display
TypeOLED
Resolution1024×768
Power Supply
Battery2×18500
External power supply5V micro USB
External InterFaceUSB-C
Operating time (at t=22°C)6h
Physical Characteristics
Weight without battery450g470g
Size mm145 x 67 x 69m155 x 67 x 69mm
Enviromental Compatibility
Water proofIP67 (1m/30min.)
Operating temperature-20°C +50°C
Storage temperature-40°C +60°C
