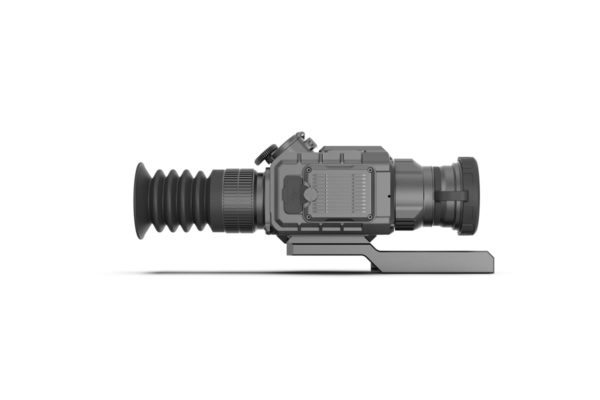

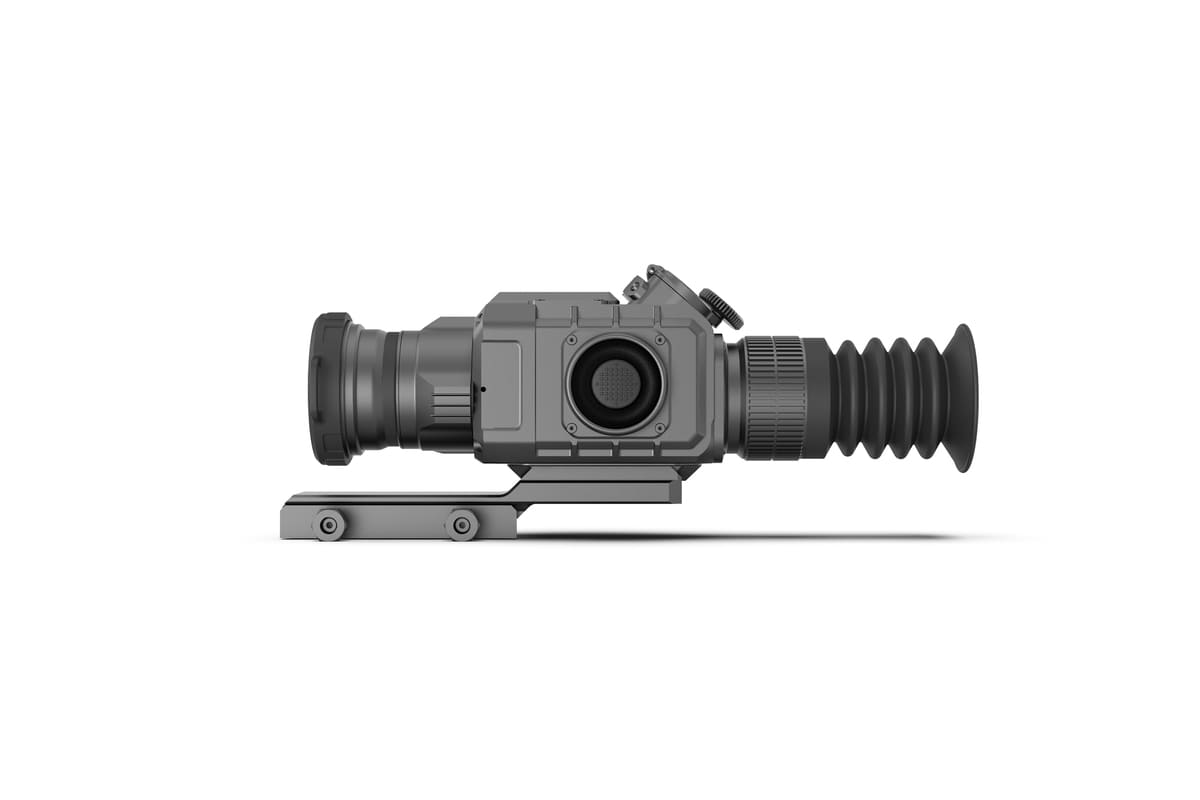

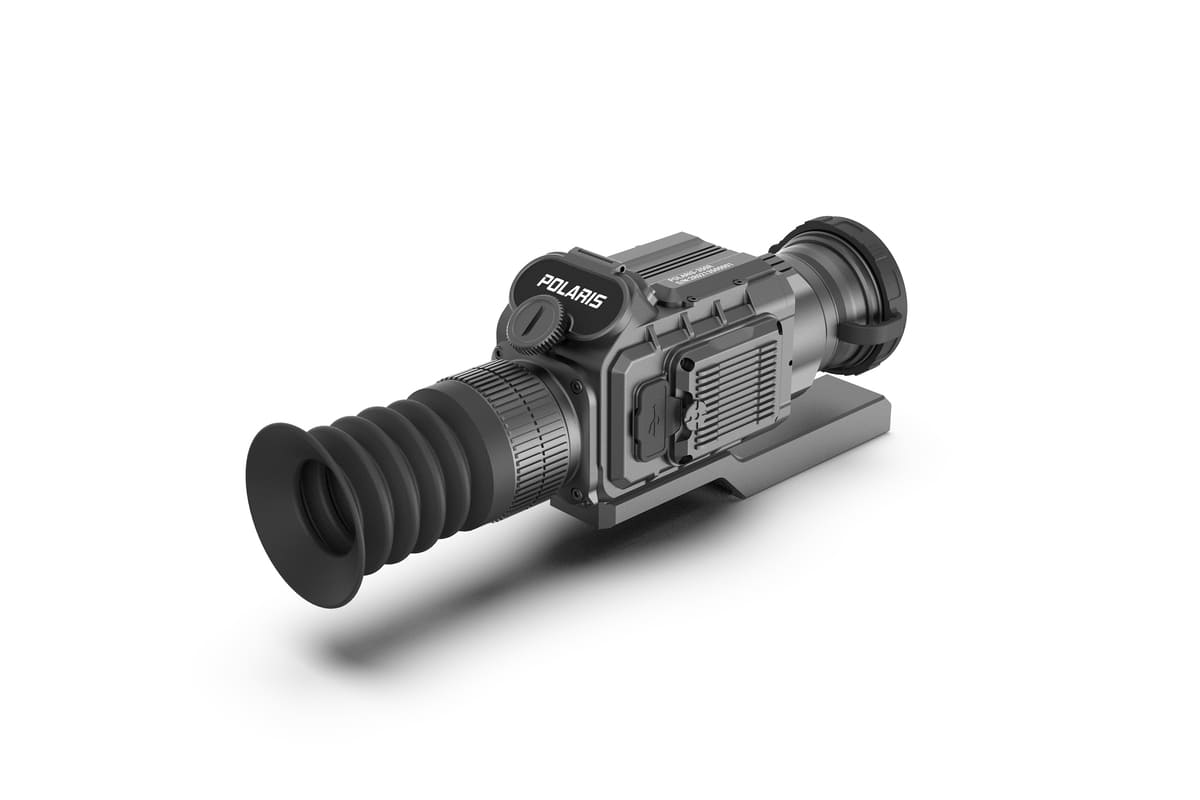

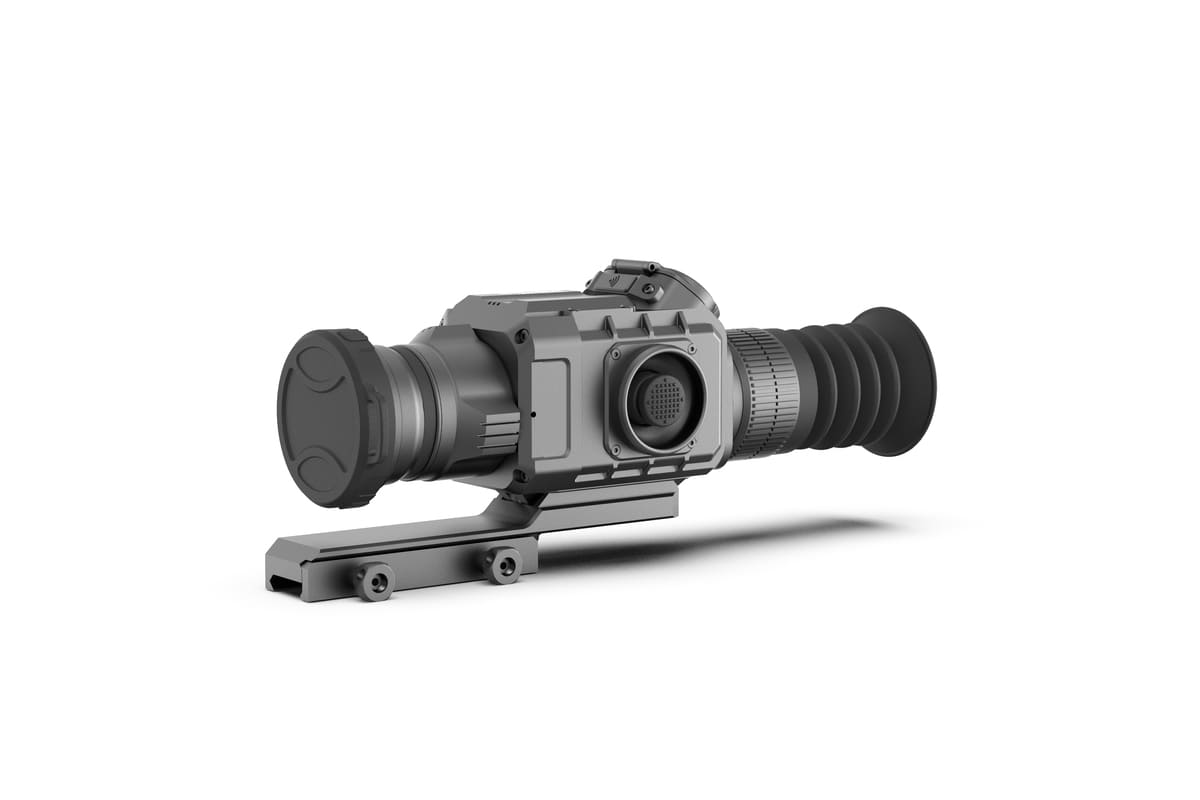

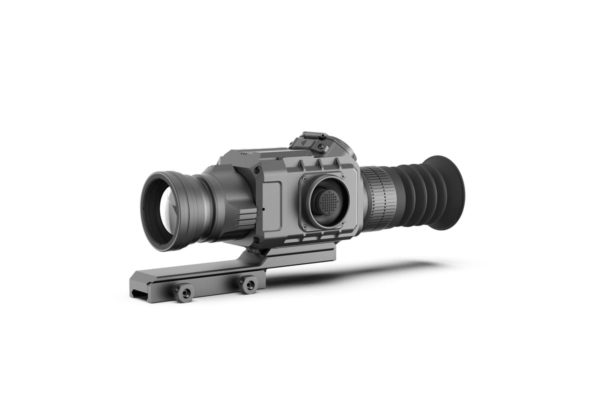

Thermal vision Polaris

– 640 high-resolution sensor
– 12μm advanced imaging sensor
– High definition image
– Built-in laser rangefinder (optional)
– IP67 protection range
– Long lasting operation time
– Wifi and on-board recording
– High-resolution OLED display
– 1200G shock resistance

Category:

Description

Detection Range

A powerful F35 /1.1 or F50/1.1 objective lens combined with a highly-sensitive
thermal imaging sensor provides exceptional detection capabilities.

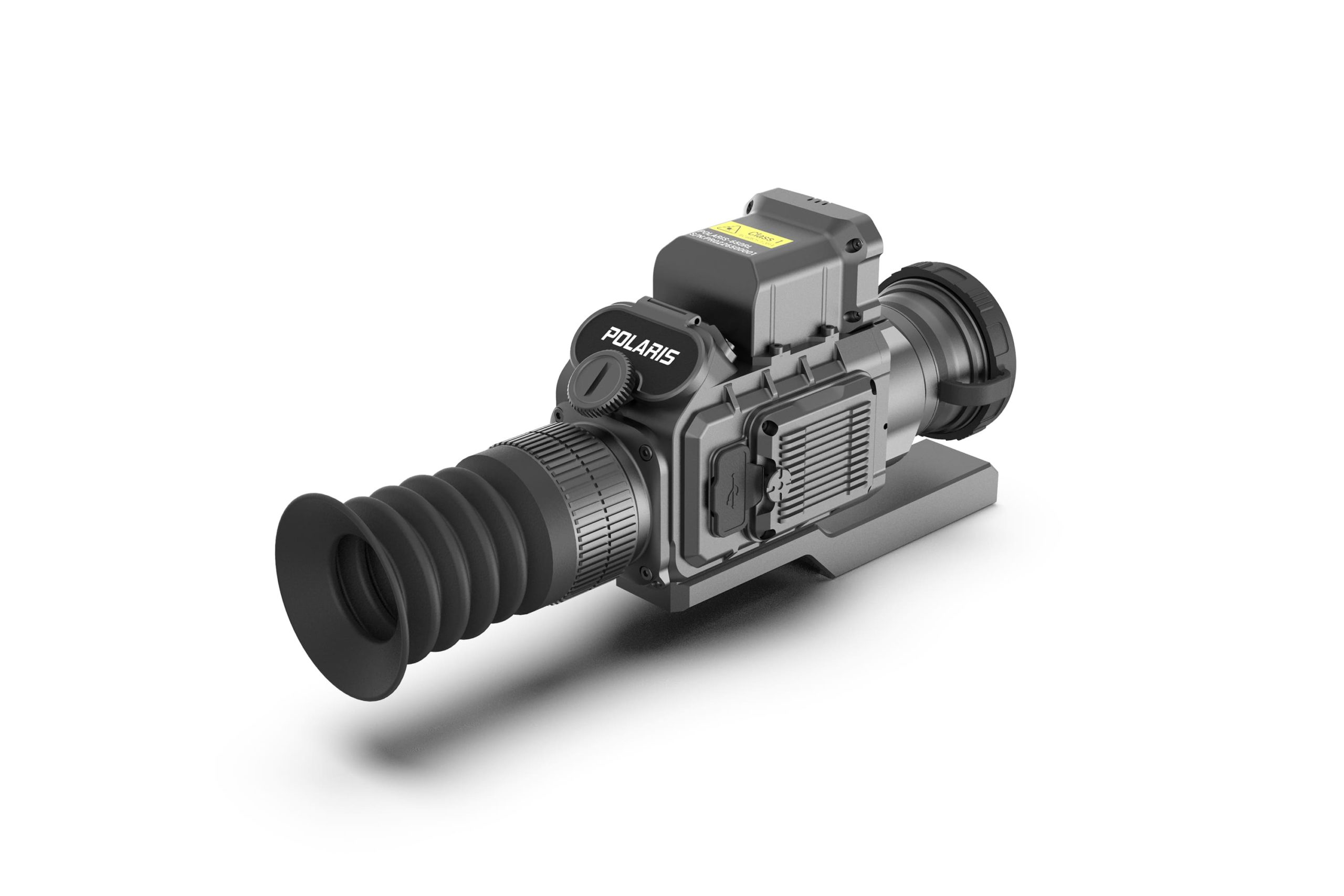

Built-in Laser rangefinder (Optional)

Polaris is capable of accurately measuring distance to objects up to 1000 meters
away. The Integrated, precise laser rangefinder provides three modes -single time
measurement mode, scanning mode and high-humidity mode.
-Wavelength: 905 nm
-Max. measuring range: 1000 m
-Measurement accuracy :± 1m
– ( Safety class for laser equipment according to IEC 60825-1:2014: 1)

Technical specification

635/635RL650R/650RL335R/335RL350R/350RL
Detector
TypeUncoled Vox
Resolution640×512384×288
Frame rate50Hz
Pixel12μm
Spectral range8-14μm
NETDLess than 30mk
Optical characteristics
Objective lens35mm/F1.150mm/F1.135mm/F1.150mm/F1.1
Magnification1.5x2.2x2.7x3.8x
FOV12.6°x10°8.8°x7°7.5°x5.6°6.5°x4°
Close-up range5m
Dioptre adjustment±5D
Functions
Zoom2x/4x/8x/PIP2x/4x/PIP
Filters6 optional
Start up timeLess than 5 seconds
Start up imageCan be customized
Image enhancementDDE
Contrast and brightnessAGC
Display
Online updateBoth code and GUI resources
TypeOLED
Resolution1024×768
External videoWIFI
Storage32GB
Power Supply
Battery2×18500
External power supply5V micro USB
Operating time (at t=22°C),h6h
Physical Characteristics
Weight without battery639g720g618g650g
Size mm178 x 76 x 100mm188 x 76 x 100mm178 x 76 x 100mm188 x 76 x 100mm
Enviromental Compatibility
Water proofIP67 (1m/30min.)
Operating temperature-20°C +50°C
Storage temperature-40°C +60°C
Laser Rangefinder – Polaris 635RL/650RL
Safety class for laser aquipment according to IEC1
Measuring range5-1000m
Measurement accuracy±1m
